This CO2 incubator series integrates heating and Peltier cooling systems, representing an advancement in environmentally friendly and energy-efficient temperature management technologies. These innovations ensure exceptional control accuracy with minimal fluctuations.
Technical Parameters
Temperature Range: Ambient +20°C to 60 °C
Temperature Resolution: 0.1 °C
Dry Heat Sterilization: Up to 125°C
Control Method: Digital PID
CO₂ Range: 0% to 20%
CO₂ Accuracy: ±0.1% (at 5% / 37 °C)
CO₂ Resolution: 0.1%
CO₂ Sensor: Dual-beam infrared CO₂ sensor
Display: TFT touch screen
Control Panel: Touch screen operation
Jacket Type: Air jacket (six-sideds heat)
Chamber Material: Stainless steel (304)
Specifications

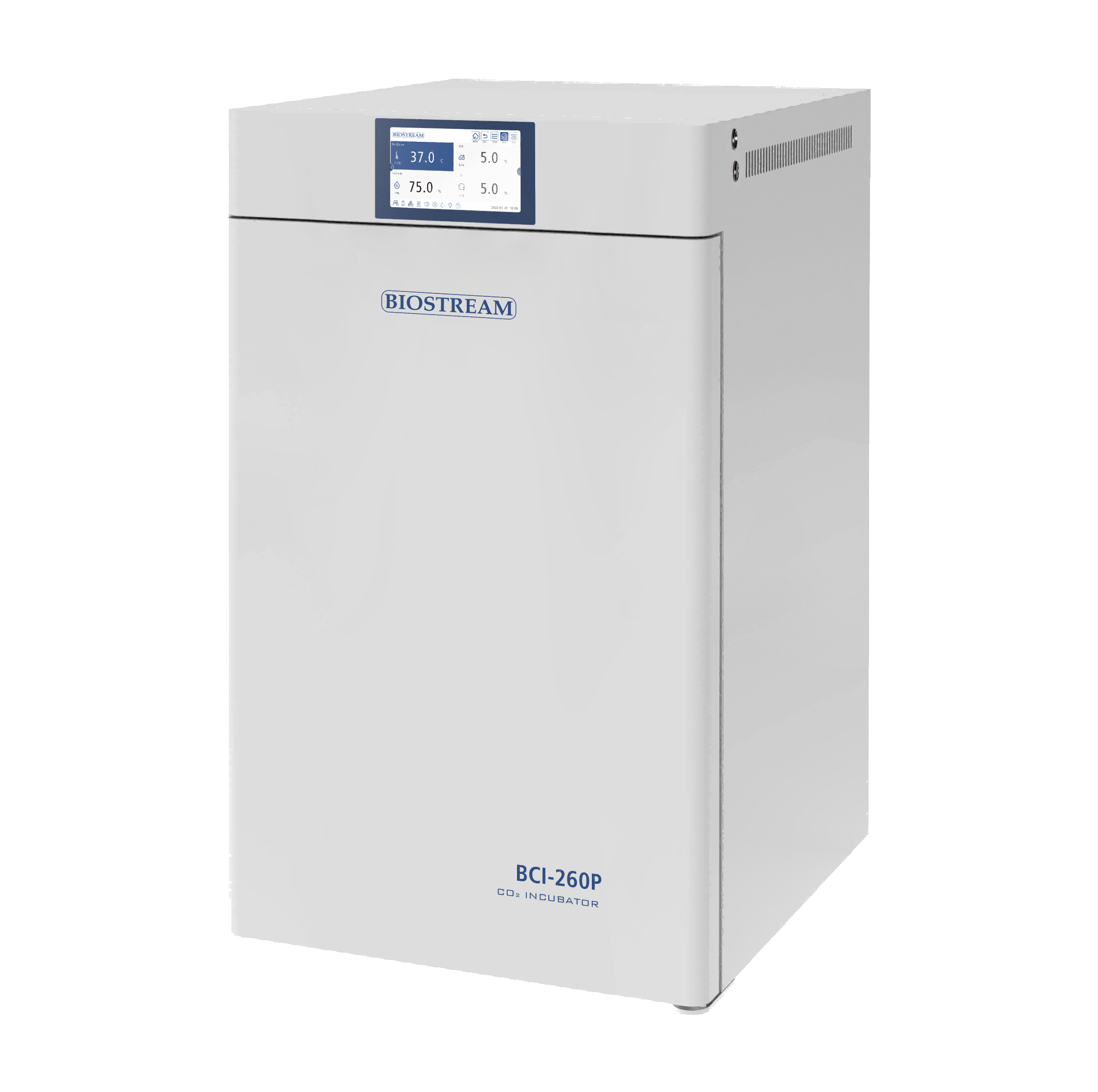

| Model | BCI-260P |
| Order No. Standard | B6X13260 |
| Chamber volume | 260L |
| Temperature Stability [℃ ] | ±0.1℃ （37℃） |
| Temp. Uniformity | ±0.4℃ (37℃ / RT.25℃ ) |
| Heating Capacity [W] | 610W |
| CO2 Inlet pressure range | 0.6~0.7bar |
| Number of shelves(Standard/Max.) | 3/16 |
| Chamber dimension [WxDxH] | 590x530x900mm |
| Overall dimension [WxDxH] | 630x760x1125mm |
| Weight（kg） | 119 |
