Developed in 1985, PowerLab has been a reliable product for an entire generation of scientists and educators, offering a simple and flexible solution for almost all types of physiological data acquisition.

PowerLabs are capable of recording at speeds of up to 400,000 samples per second continuously to disk (aggregate), and are compatible with instruments, signal conditioners, and transducers supplied by ADInstruments and many other leading brands.

PowerLabs for research

Built for precision, our research range of PowerLabs are engineered to give you high quality, reproducible data while meeting the strictest international safety standards.

Research PowerLabs provide 16-bit resolution on all gain ranges for high resolution on even the smallest of signals. Each channel has individual filters and noise reduction circuitry for minimal channel crosstalk and signal noise. All research PowerLabs have 2 analog outputs, a trigger input and offer a 5 year product warranty.

Highly functional and adaptable for even the most demanding of applications, there is a research PowerLab to suit your requirements.

PowerLabs for education

The ideal DAQ solution for life science classroom experiments. PowerLab supports engaging, hands-on learning with simple set-up and good quality data. Will handle repeated and heavy use by students and maintain data accuracy and reliability.

The T Series PowerLab is an economically priced high quality DAQ unit with built-in, fully isolated, two-channel bio amplifier, isolated stimulator, separate non-isolated analog inputs and a differential-mode analog output.

PowerLab models for research

PowerLab C

Upgraded, the newest PowerLab version, with up to 32 analog input channels and power for external devices to 350W.

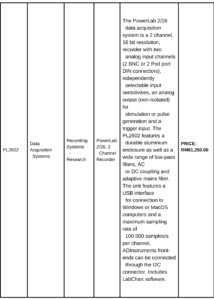

PowerLab 2/26
For those who require minimal channels the 2/26 is an ideal entry option. Maximum sampling rate of 100kHz per channel. Independent ADCs for each channel to keep data perfectly in sync.

PowerLab 4/26
Our entry level research grade DAQ system, the 4/26 provides 4 analog input channels and has a maximum sampling rate of 100kHz per channel. Independent ADCs for each channel to keep data perfectly in sync.

PowerLab 8/35
Our most popular model, the 8/35 PowerLab is for those researchers requiring an advanced feature set. 8 analog input channels (4 of which can be used in differential mode), 8 digital inputs, 8 digital outputs and a maximum sampling rate of 200 kS/s per channel.

PowerLab 16/35
With 16 analog input channels (4 of which can be used in differential mode), 8 digital inputs, 8 digital outputs and a 400kS/s ADC giving a maximum per channel sampling rate of 200 kS/s – the 16/35 research PowerLab is our most powerful DAQ system.

PowerLab models for education

PowerLab 26T
Integrated data recording featuring a dual Bio Amp, an isolated stimulator, trigger input, 4 analog inputs, 8 digital inputs and 8 digital outputs. Independent ADCs for each channel to keep data perfectly in sync.

PowerLab 15T
Entry level integrated data recording featuring a dual Bio Amp, an isolated stimulator and 2 analog inputs. Independent ADCs for each channel to keep data perfectly in sync.

Accessories of PowerLab

MLTF050/ST

A low-cost amplified bridge-type force
transducer with measuring range 50g. The
transducer provides a fixed +3V excitation
source for the internal sensor. A range of digital
low-pass filters are built-in to reduce signal
noise and a software-controlled DC offset
adjustment is provided. A detachable mounting
bar is incorporated with the unit.

MLA41 MANIPULATOR

For use with ADInstruments force transducers, Reflective Drop Counter and Muscle Holder. The Manipulator is able to hold rods for transducers of up to 12 mm in diameter. Can be purchased with or without a retort stand.
