PG200N Spectral PAR Meter

Indoor agriculture is, more than ever, “farming by the numbers”, and data-analytics is crucial to measure important lighting conditions to help you assess, analyze and evaluate to improve production and conserve resources.

Category:
FacebookLinkedinWhatsappEmail

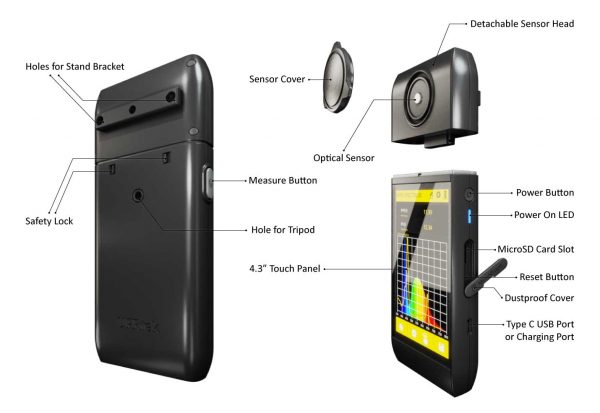

The PG200N is a Spectral PAR meter used to measure the quantity and quality of light for a new generation of indoor farmers who use artificial lighting as a substitute or complement to sunlight.

Light is formless and hard to measure.  And yet, as an indoor farmer, it’s a crucial to get your lighting right; quantity, intensity, color and duration (diurnal and seasonal rhythms).  These are the data components of sunlight that are the challenges of artificial lighting to emulate.

A PAR meter can provide you reliable measurement with comprehensive data tools to help you collect, analyse, and evaluate light data to help you understand your light-to-plant relationship and assist you in making better decisions for your business.



Specs at-a-glance

Spectrum
Wavelength Range 350 to 800 nm
Measurement Range
    1. 70 ~ 150,000 lx
    1. 0.5~1,000 W/m2 (Irradiance)
    1. 1~3,000 µmol/(m2*s) (PPFD)
Features
Measuring Capabilities
    1. Illuminance (LUX)/Foot Candle (fc)
    1. Correlated Color Temperature (CCT)
    1. Photosynthetically Active Radiation (PAR)
      (1) PPFD(400nm~700nm)
      (2) PFD-R(600nm~700nm)
      (3) PFD-G(500nm~600nm)
      (4) PFD-B(400nm~500nm)
      (5) PFD(380nm~780nm)
      (6) PFD-UV(350nm~400nm)
      (7) PFD-FR(700nm~800nm)
      (8) PFD-B:G Ratio (400~500nm:500~600nm)
      (9) PFD-R:FR Ratio (600~700nm:700~800nm)
    1. Phytochrome Photostationary State(PSS)
    1. Temperature (℃)*7
    1. Relative Humidity (% RH)*7
System
Display 4.3″ 800X480 Capacitive Touch LCD
Dimensions 190 x 81.7 x 29.5 mm（H x W x D）
Weight (with Batteries) 280 g ± 10 g
Data Format Compatible Excel / JPG
