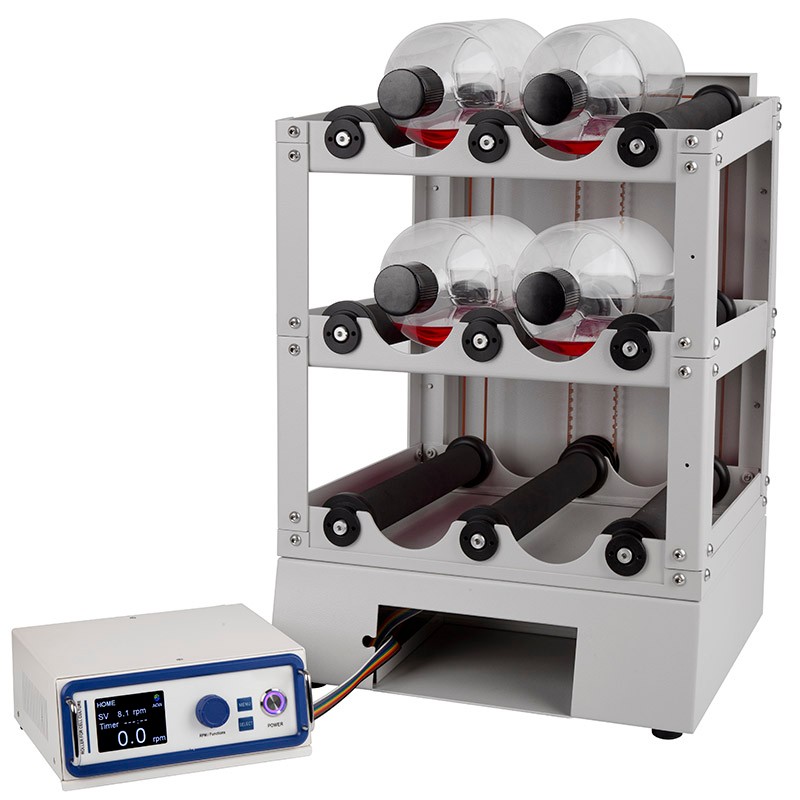

This compact roller bottle system is suitable for small-scale development and research of biological samples. It can be installed on a laboratory bench or placed inside a biological incubator, with a capacity of up to six 2000 mL roller bottles simultaneously.
> The control panel can be mounted directly on the unit or operated remotely
> Flat-profile data cable design eliminates the need for dedicated ports on the chamber
> Maintenance-free brushless DC motor drive
> Power transmission via reinforced polyurethane timing belts for high strength and durability
> Powder-coated aluminum housing offers long-term reliability and easy cleaning
> Non-slip rubber rollers ensure secure bottle adhesion, synchronous rotation, and zero slippage
Specifications
| Model | Bio Roller Mid |
| Rpm Range | 0.2-8.1rpm |
| Accuracy | 0.1rpm |
| Increment | 0.1rpm |
| Control | Microprocessor digital PID |
| Time Range | Continuous or up to 99h 59min |
| Accuracy | ±1% |
| Display | LED Display |
| Motor type | Brushless DC motor |
| Standard roller bottle | 110mm to 120mm, 6ea |
| Roller deck dimension | 362（W）×299（D）×412（H）mm |
| Overall dimension | 375（W）×370（D）×545（H）mm |
| Power | 110mm to 120mm, 4ea |
| Weight | 13.5kg |
| Order No. | B6110200 |
