HOT PLATE STIRRER

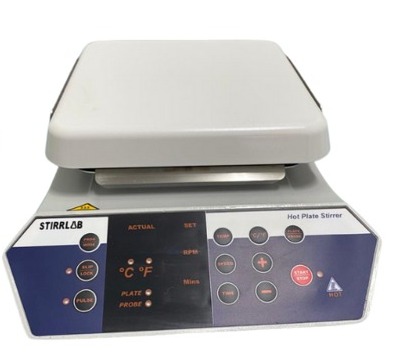

Hot Plate Magnetic Stirrer

  • Robust top made up of nanocrystalline glass ceramic for resistance against temperature shocks and liquid splash
  • Elevated control panel for protection against leaking liquids
  • Display for easy value setting, all set values readily visible without toggle. No shared display
  • Slip detection mode for detecting stir bar slip and automatic optimization of stirring operations to ideal limits
  • Varibale speed setting from 200 to 2200 RPM in steps of 10 RPM with variable timer setting
  • 3 heating modes for rapid, gradual & accurate heating
  • Heating range from ambient to 550°C / 350°C
  • Pulse mode for vigorous mixing of liquids
  • Constant speed across diverse loads and viscosity
  • Compatible with PT-1000 Temperature Probe for accurate measurement of media temperature (available as optional accessory)
  • Powerful BLDC motor for constant Speed delivery under varying load conditions
  • Safe temperature setting up to 575°C / 375°C for protection against overheating and better reliability
  • Support stand with boss head
  • Accessories : PT 1000 temperature probe

SPECIFICATIONS

Model Specification MAC-550 MAC-350
Stirring Quantity in Ltr (max) 20 Litres
Heating temp Range (°C) Ambient to 550°C Ambient to 350°C
Speed Range (RPM) DC motor Brushless DC motor
Speed Setting 200 – 2200 in steps of 10 RPM
Number of Stirrer positions 1
IP Rating IP 21
Setup plate feature Ceramic Plate
Set-up plate dimension 180 x 180 mm
RS 232 interface Yes
Temp Accuracy ± 1°C
Temp Accuracy of PT-1000 Probe ± 0.1°C
Safety Temp Circuit Yes
Weight 5.4 Kgs
Slip detection Yes
External control panel Optional
Dimensions (L x W x H) 330 x 225 x 113 mm
Length of Stir Bar 25 mm

*Stand and PT-1000 probe to be ordered separately
