CV600 Cinema & Stage Spectral Color Meter

Lighting setup for Cinema and Stage is subjective, tedious and time consuming.  We want to help.  The CV600 is a Cinematic Lighting tool-pack, with all the measurements and metrics for assessing, evaluating and making good choices.

Category:
FacebookLinkedinWhatsappEmail

Lighting setup for Cinema and Stage performance is tedious,  time consuming and visually exhausting.  Spectrometers are used in the industry to bring objectivity, efficiency and relief to an all too subjective, imperfect task.

CV600 focuses on performance lighting with all the tools so that lighting crews can assess/adjust color fidelity, purchase better lights, recall lighting setup from previous performances and make better overall choices about light.

  • Spectrum and CCT measurement
  • SSI and TLCI Color Rendering Indicies
  • Flicker Checker
  • Gel Finder
  • Exposure Meter

CV600 is used by directors of photography or lighting crews of cinematic or stage productions.



Specs at-a-glance

Spectrum
Sensor CMOS Linear Image Sensor
Wavelength Range 380 to 780 nm
Wavelength Data Increment 1 nm
Spectral Bandwidth Approximately 9 nm (Half Bandwidth)
Measurement Range 5 to 100,000 lx
Features
Measuring Capabilities
    1. Illuminance (LUX)/Foot Candle (fc)
    1. Correlated Color Temperature (CCT)
    1. CIE Chromaticity Coordinates
      (1) CIE 1931 x,y Coordinates
      (2) CIE 1976 u’,v’ Coordinates
    1. Delta uv (Duv)
    1. Color Rendering Index (CRI, Ra)/R1 to R15
    1. Television Lighting Consistency Index (TLCI)
    1. Television Lighting Matching Factor (TLMF)
    1. Spectral Similarity Index (SSI)
    1. Irradiance（380nm~780nm）(W/m2)
    1. TM-30-15 (Rf, Rg, Color Vector Graphic)
    1. Flicker Frequency
    1. Percent Flicker
    1. Flicker Index
    1. LB / CC Filter
      (1) Light Balancing Filter (LBf)
      (2) Color Correction Filter (CCf)
      (3) Light Balancing Index (LBi)
      (4) Color Correction Index (CCi)
    1. Exposure
      (1) Shutter Priority (T Mode)
      (2) Aperture Priority (F Mode)
      (3) Shutter / Aperture Priority (TF Mode)
      (4) Exposure Value (EV Mode)
    1. Spectral Power Distribution (SPD) mW/m2
    1. Peak Wavelength (λp)
    1. Peak Wavelength Value (λpV)
    1. Integration Time (I-Time)

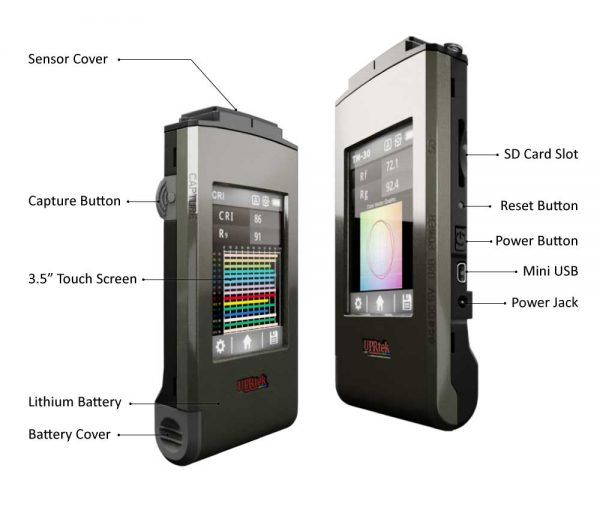

System
Display 3.5″ 320X240 Resistive Touch LCD
Battery Operation Time ≦ 5 hours / Fully Charged
Dimensions 147.5 x 78 x 24 mm (H x W x D)
Weight（with Battery） 225 g ± 10 g
Display languages English / Traditional Chinese / Simplified Chinese / Japanese / Spanish / German / French / Italian / Russian
Data Format Compatible Excel / JPG
